A2UI Component Reference

Flow-Like A2UI surfaces are normalized component trees. Each component has a stable ID, a lower-camel-case type, typed properties, optional styles, and references to its children. This is the same contract used by the visual builders, FlowPilot, Pages, and Widgets. For visual authoring, start with Create Pages or Create Widgets.

Use the current contract

Component types are lower camel case (textField, not TextField), properties live directly inside component, and children reference component IDs. The old { "type": "Button", "props": { ... } } shape is not the runtime contract.

Surface shape

A generated or imported surface uses one root ID and a flat component array:

{
  "rootComponentId": "root",
  "canvasSettings": {
    "padding": "24px"
  },
  "components": [
    {
      "id": "root",
      "style": {
        "className": "min-h-full bg-background text-foreground"
      },
      "component": {
        "type": "column",
        "gap": { "literalString": "16px" },
        "children": {
          "explicitList": ["title", "open-dashboard"]
        }
      }
    },
    {
      "id": "title",
      "component": {
        "type": "text",
        "content": { "literalString": "Operations dashboard" },
        "variant": { "literalString": "heading" },
        "size": { "literalString": "2xl" },
        "weight": { "literalString": "bold" }
      }
    },
    {
      "id": "open-dashboard",
      "component": {
        "type": "button",
        "label": { "literalString": "Open dashboard" },
        "variant": { "literalString": "default" },
        "actions": [
          {
            "name": "navigate_page",
            "context": { "route": "/dashboard" }
          }
        ]
      }
    }
  ],
  "dataModel": []
}

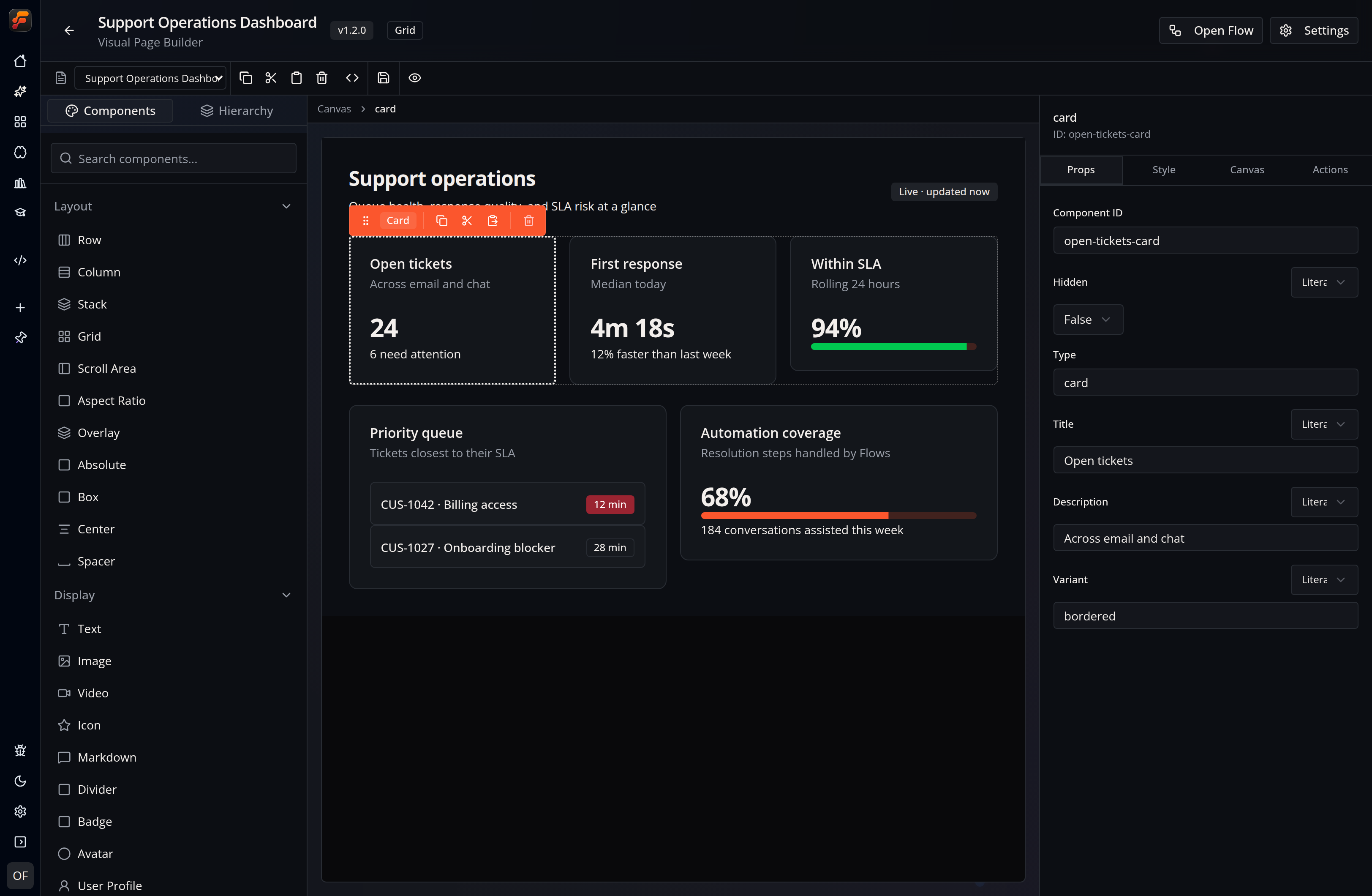

The visual builders maintain this structure for you. Use the JSON contract directly when generating a complete surface with FlowPilot or another coding agent.

Shared value types

Most visible component properties use BoundValue, even when their value is currently static.

Value	JSON shape
String	{ "literalString": "Hello" }
Number	{ "literalNumber": 42 }
Boolean	{ "literalBool": true }
Select options	{ "literalOptions": [{ "value": "open", "label": "Open" }] }
Arbitrary JSON	{ "literalJson": "{\"key\":\"value\"}" }
Data binding	{ "path": "$.data.customer.name", "defaultValue": "Customer" }

Do not substitute raw strings or numbers where a component property expects a BoundValue.

Children

Use an explicit list for a known component tree:

{
  "children": {
    "explicitList": ["heading", "description", "actions"]
  }
}

Template children are available for data-driven repetition:

{
  "children": {
    "template": {
      "dataPath": "$.data.items",
      "itemIdPath": "$.id",
      "templateComponentId": "item-template"
    }
  }
}

For a reusable card, row, or repeated interaction pattern, prefer a widgetInstance. A Widget owns its own component tree, exposed properties, and named actions.

Actions

Actions are an array inside the interactive component:

{
  "type": "button",
  "label": { "literalString": "Approve" },
  "actions": [
    {
      "name": "workflow_event",
      "context": {
        "nodeId": "board-event-node-id"
      }
    }
  ]
}

Use one board Event for each distinct purpose. Page actions use the fixed workflow_event name and identify the selected Event with context.nodeId. The Event handler reads live input state with nodes such as Get Element Value or Get File Input Files; typed values should not be copied into the action context.

The current action contracts are:

Action	Context
workflow_event	nodeId; the builder also includes the owning appId and boardId
widget_event	actionId; resolved through the Widget instance’s action binding
navigate_page	route plus optional queryParams
external_link	url

For Widgets, declare the action ID in the Widget definition and bind that ID when the Widget is instantiated. There are no onClick, onChange, updateData, openModal, or closeModal action objects in the current component contract. A host may receive an otherwise unknown action name as a generic userAction, but that fallback does not execute a workflow by itself.

Component catalog

The current runtime contains 71 component types.

Layout

Type	Purpose	Common properties
row	Horizontal flex layout	gap, align, justify, wrap, reverse, children
column	Vertical flex layout	gap, align, justify, wrap, reverse, children
stack	Layer children on the z-axis	align, width, height, children
grid	CSS grid layout	columns, rows, gap, columnGap, rowGap, autoFlow, children
scrollArea	Scrollable content region	direction, children
aspectRatio	Preserve a content ratio	ratio, children
overlay	Anchor components over a base component	baseComponentId, overlays
absolute	Free-positioned canvas	width, height, children
box	Generic semantic container	as, children
center	Center one or more children	inline, children
spacer	Fixed or flexible space	size, flex
widgetInstance	Instance of a reusable Widget definition	widgetId, instanceId, inlineWidgetDef, exposedPropValues

Display and data

Type	Purpose	Common properties
text	Plain typography	content, variant, size, weight, color, align, truncate, maxLines
image	Image with loading and fallback behavior	src, alt, fit, fallback, loading, aspectRatio
icon	Lucide icon	name, size, color, strokeWidth
video	Video player	src, poster, autoplay, loop, muted, controls
lottie	Lottie animation	src, autoplay, loop, speed, width, height
markdown	Rendered Markdown content	content, allowHtml
divider	Horizontal or vertical separator	orientation, thickness, color
badge	Compact status or category label	content, variant, color
avatar	Avatar image with fallback	src, fallback, size
userProfile	User lookup and profile presentation	value, variant, avatarSize, visibility flags
progress	Progress indicator	value, max, showLabel, variant, color
spinner	Indeterminate loading state	size, color
skeleton	Loading placeholder	width, height, rounded
table	Data table	columns, data, sorting, search, pagination, and selection flags
tableRow	Explicit table row	cells, selected, disabled
tableCell	Explicit table cell	content, isHeader, spans, align
filePreview	Preview a PDF, image, media, code, or text file	src, filename, mimeType, fileType, showControls
diffView	Compare text, code, Markdown, JSON, or documents	original, modified, mode, kind, language
boundingBoxOverlay	Display boxes over an image	image source, boxes, labels, and display options

Interactive

Type	Purpose	Common properties
button	Primary user action	label, variant, size, disabled, loading, icon, actions
feedback	Positive/negative, rating, and comment feedback	mode, labels, ratings, comment settings, context flags
appLink	Link to an app surface	target, label, appId, eventId, variant, disabled
textField	Single- or multi-line text input	value, placeholder, label, inputType, multiline, required
select	Single or multiple selection	value, options, placeholder, multiple, searchable
slider	Numeric range input	value, min, max, step, showValue, label
checkbox	Boolean or indeterminate input	checked, label, disabled, indeterminate
switch	Boolean switch	checked, label, disabled
radioGroup	Single selection from visible options	value, options, orientation, label
dateTimeInput	Date, time, or combined input	value, mode, min, max, label
fileInput	File upload	value, accept, multiple, directory, maxSize, maxFiles, error
imageInput	Image upload with preview	file-input properties plus aspectRatio and showPreview
voiceInput	Record audio or speech-to-text input	value, variant, size, mode, invoke, resultMode
cameraView	User-started camera with recent audio capture and annotations	value, facingMode, deviceId, intervalMs, maxWidth, quality, audioEnabled, audioBufferSeconds, overlays, effects
link	Internal route or external link	href, label, route, queryParams, target, variant
imageLabeler	Draw and edit labeled image regions	image, labels, boxes, and editing options
imageHotspot	Interactive image hotspots	image, hotspots, selection, and action options

Containers

Type	Purpose	Common properties
card	Framed content group	title, description, footer, variant, padding, children
modal	Modal dialog	open, title, description, close behavior, size, children
tabs	Tabbed content	value, tabs, orientation, variant, tab styles
accordion	Collapsible sections	items, selection and collapse behavior
drawer	Edge-mounted panel	open, side, title, close behavior, children
tooltip	Hover or focus explanation	content, side, delay, and trigger component
popover	Anchored interactive panel	open state, placement, trigger, and content component

Charts, maps, planning, and embeds

Type	Purpose
plotlyChart	Plotly series, axes, layout, and advanced raw configuration
nivoChart	Nivo chart types including bar, line, pie, radar, heatmap, Sankey, and more
geoMap	Geographic map with markers and view settings
graph	Node and edge network graph with legend, search, and inspectors
ontologyGraph	Live explorer for one of the project’s ontologies
calendar	Month, week, day, or agenda planning view
gantt	Interactive task timeline with dependencies
iframe	Sandboxed external URL or srcdoc embed

When workflow data drives a chart or table, use Push Data to Chart, Push CSV to Table, or Update Table. Literal data properties are best kept for static design-time content.

Games and interactive media

Type	Purpose
canvas2d	Root 2D canvas
sprite	Positioned 2D image sprite
shape	Rectangle, circle, polygon, line, or other 2D shape
scene3d	Root 3D scene
model3d	GLB or GLTF model
dialogue	Visual-novel-style dialogue
characterPortrait	Character image and expression
choiceMenu	Player decision menu
inventoryGrid	Inventory slots and items
healthBar	Health or resource meter
miniMap	Compact map with markers

Styling

style belongs beside component in each component record:

{
  "id": "summary-card",
  "style": {
    "className": "rounded-xl border border-border bg-card p-6 text-card-foreground",
    "shadow": {
      "x": "0",
      "y": "8px",
      "blur": "24px",
      "color": "rgb(0 0 0 / 0.12)"
    }
  },
  "component": {
    "type": "card",
    "title": { "literalString": "Summary" }
  }
}

Prefer semantic theme classes such as bg-background, bg-card, text-foreground, text-muted-foreground, and border-border. They adapt to light and dark mode without duplicating color rules.

Structured style fields cover background, border, shadow, spacing, sizing, position, transform, overflow, typography, visibility, and responsive overrides.

Choosing a component

Layout first

Start with column, row, or grid. Add scrollArea, overlay, or absolute only when the content model requires them.

Bind live values

Use BoundValue paths for shared data, and element setter nodes when a workflow owns the displayed value.

Reuse interactions

Extract repeated interactive cards or rows into Widgets and declare their actions at the Widget level.

Respect both themes

Prefer semantic theme tokens and verify the surface in both light and dark mode.

Device location

Enable showLocate on a geoMap to show Find my location. The button reads one foreground location fix using the native provider on supported Apple devices or the browser location provider. It does not start tracking when the map renders. The editing canvas disables location acquisition. Closing the Page, hiding it, or moving the app into the background cancels the request and discards late fixes.

Bind Location found in the map’s Actions tab to receive these fields:

• coordinate: the existing {latitude, longitude} object.
• geometry: a Geometry Point, {"type":"Point","coordinates":[longitude,latitude]}.
• location: the full fix, including geometry, latitude, longitude, accuracy, timestamp, altitude, altitudeAccuracy, speed, and heading.

Accuracy and altitude are measured in meters, speed in meters per second, and heading in degrees. Timestamp is Unix time in milliseconds. Unavailable altitude, altitude accuracy, speed, or heading is null. Geometry remains two-dimensional; altitude belongs in the fix metadata. Existing map Event bindings that read coordinate keep their current shape.

Location error carries code and message, also available under error. The map shows the error beside its controls. This Event runs only when explicitly bound; older wildcard or legacy actions do not inherit it.

Use Get Current Location (geo.getCurrentLocation, under Web / Geo / Location) to read location from an Event without a map. Its High Accuracy input defaults to false, Maximum Age defaults to zero seconds and accepts up to 300 seconds, and Timeout defaults to 30 seconds with a range of 1 to 120. Success provides a typed Point on geometry, the full fix on location, and the legacy object on coordinate. The Error branch provides a structured code and message. An Event running remotely reads from its invoking device and requests permission to share that fix with the app.

Connect geometry directly to Geometry Point inputs, Point Distance (Meters), or map update nodes. Point to Legacy Coordinate adapts it for existing H3, routing, and geocoding nodes. Use geodesic distance in meters for geographic radius checks; planar distance operates in coordinate degrees.

Live camera

Use cameraView when a Page needs to capture a photo, translate visible text, combine a scene with recent speech, or show detection results over a live preview. The user starts the camera with its Start camera button. Loading a Page, editing its layout, or calling a node cannot grant camera access or start the camera.

{
  "id": "inspection-camera",
  "component": {
    "type": "cameraView",
    "label": { "literalString": "Inspection camera" },
    "facingMode": { "literalString": "environment" },
    "intervalMs": { "literalNumber": 2000 },
    "maxWidth": { "literalNumber": 1280 },
    "quality": { "literalNumber": 0.85 },
    "value": { "path": "/camera/frame" },
    "overlays": { "path": "/camera/annotations" }
  }
}

Bind the component’s Image captured or Interval frame event in the builder’s Actions tab. These events use the Page’s existing Event authorization and Widget action bindings. Interval capture requires an explicit frame handler. Setting an interval without one never transfers frames. Zero disables sampling; positive values have a minimum of 250 milliseconds. A tick is skipped while the previous capture or Event is still running.

After Start, the value binding and Camera ready event expose surfaceId, componentId, sessionId, status, audioEnabled, audioActive, audioBufferSeconds, and audioAvailableMs. audioActive indicates whether the microphone is recording; audioAvailableMs is the recent history available for a clip. A separate button can read this bound session and pass its IDs to Capture Camera Frame. Every camera command requires the current session ID, so an earlier Event cannot capture from a camera that the user has restarted.

The capture payload contains surfaceId, componentId, sessionId, frameId, capturedAt, width, height, and an image temporary-storage reference. It is also available as frame and value in the action context. The value binding then stores this reference, without image bytes. Read Camera Image turns the frame into the image handle used by OCR and detection nodes. Capture Camera Frame requests a new frame from a camera on the invoking screen, including when the requesting Event runs remotely.

Capture recent audio

Set audioEnabled to { "literalBool": true } to offer microphone capture. The user must press Start camera and microphone and grant microphone permission. The default is false, so existing Pages capture video only. audioBufferSeconds sets the amount of recent audio retained in memory, in whole seconds from 1 to 300; the default is 60. Older samples are discarded as new samples arrive. The buffer stays on the device until an Event explicitly requests a clip. Automatic frame events transfer images only.

Pass the current surfaceId, componentId, and sessionId to Capture Camera Audio (ui.captureCameraAudio) and choose the recent duration to retrieve. The Duration input defaults to 10 seconds. Capture Camera Input (ui.captureCameraInput) takes a new frame and a clip from the same active session before uploading either, so later upload time does not shift the captured input. Both nodes accept a duration from 0.1 to 300 seconds and return the available portion if the buffer is shorter. Check the actual Recorded Duration output. An empty buffer or an inactive microphone follows the Error branch.

Both nodes provide Clip metadata, Audio URL, Audio Path when available, and the actual Recorded Duration in seconds. The combined node also provides Frame. Connect Audio Path to Speech to Text, or pass Audio URL to an audio service. Connect Frame to Read Camera Image for OCR or vision analysis. Audio is a 16 kHz, mono, PCM16 WAV file in the Event’s configured temporary storage. Workflows receive file references; audio bytes do not travel in component events.

Clip metadata includes surfaceId, componentId, sessionId, clipId, capturedAt, startedAt, endedAt, durationMs, requestedDurationMs, sampleRate, channels, and an audio file reference containing name, type, size, url, and optional flowPath. Requests always use the current session ID and cannot read history from an earlier camera session.

Annotate and control the preview

Update Camera Overlays accepts the original frame and an array of annotations. Keep that frame attached to the analysis result: the frontend rejects an update after a newer frame is captured or the camera session ends. Annotation types are box, text, point, polygon, blur, and dim. Every annotation needs a unique id. Coordinates are normalized to the upright captured image, with (0, 0) at the top left. Boxes and effect regions use x, y, width, and height; polygons use points, an array of [x, y] pairs. Text uses x, y, and text.

[
  { "id": "object-1", "type": "box", "x": 0.1, "y": 0.2,
    "width": 0.3, "height": 0.4, "text": "Package", "confidence": 0.96 },
  { "id": "translation-1", "type": "text", "x": 0.15, "y": 0.65,
    "text": "Keep upright", "color": "#ffffff", "fontSize": 18 }
]

Annotations expire after five seconds by default, configurable from 100 to 60,000 milliseconds. Sending an empty array clears them. For data-bound updates, wrap the array as { sessionId, frameId, overlays, ttlMs }. overlayClick carries the clicked annotation and its frame identity. Mirroring changes only the preview; the component aligns annotations with both mirrored previews and contain/cover fitting.

The effects object supports grayscale and sepia from 0 to 1, blur from 0 to 24 pixels, and brightness/contrast from 0 to 3. These effects and annotation regions affect the preview only. Captured images contain the original pixels, so a preview blur does not redact an image sent to an Event.

Freeze pauses the displayed frame for inspection, disables microphone tracks, and discards audio history. Resume returns to live video and re-enables the already granted microphone tracks with an empty buffer. It never opens a new microphone permission request. Stop releases the camera and microphone and discards audio history. The Control Camera node exposes the same operations for the session that produced a frame. Camera tracks and interval scheduling stop when the Page unmounts, the document becomes hidden, the component or its parent is hidden, or the native host reports an inactive device. Returning to the screen requires another user start. Late permission replies and analysis results cannot reopen or modify an ended session. Leaving or hiding the screen also discards audio history. Browser capture requires HTTPS or localhost and browser/device permission. Media references use the requesting Event’s configured local or remote temporary storage.

If microphone processing is suspended or interrupted while the screen remains visible, the session stops and its audio history is discarded. Press Start camera and microphone again to begin a new session.

Play audio from a workflow

Use Play Sound (ui.playSound, under UI → Audio) to play audio on the screen that invoked an Event. It works with local and remote Events and does not require an audio component on the Page. Connect Text to Speech or Capture Camera Audio to its Audio Path input, or supply an audio download URL through Audio URL. Supply exactly one of these inputs.

Volume defaults to 1 and accepts values from 0 to 1; 0 mutes playback. If a browser cannot apply a requested nonzero volume, the node reports unsupported_volume. Use Volume 1 and the device’s volume buttons in that case. Timeout defaults to 300 seconds and accepts 1 to 600 seconds for the frontend to load the sound, obtain a user tap if needed, and finish playback. If the browser blocks automatic playback, the screen shows a Play sound action. The workflow waits for that tap within the timeout.

The normal execution output runs after playback finishes. Duration reports the completed sound’s length in seconds. Loading errors, rejected playback, cancellation, and timeout follow the Error branch with a structured code and message. Navigating to another Page, switching accounts, hiding or backgrounding the screen, or cancelling the Event stops playback and cancels pending sound requests. A new sound for the same app stops the previous one. An Event without an available invoking screen cannot play sound through this node.

Audio travels as a URL or file reference. When a FlowPath needs a temporary copy for frontend access, the node uses the Event’s configured temporary storage and limits that copy to 32 MiB. It does not send audio bytes through the device command channel. See the Play Sound node reference for its pins.
