Ontology & Knowledge Graph

An ontology is a semantic layer you place over the database tables you already have. Instead of thinking in rows and columns, you describe your data as object types (Person, Vehicle, Shipment…) connected by link types (drives, ships_to, works_at…). Flow-Like then lets you search, traverse, visualize, and run governed actions on those objects — a full knowledge graph — without moving or copying any data.

Nothing is duplicated

An ontology is metadata only. It maps your existing tables to object and link types; the tables stay exactly as they are and keep working as normal databases. You can define many ontologies over the same tables.

Where it lives

Everything is in Data Studio, an app’s Data → Data Studio view. Data Studio has these tabs:

Tab	What it’s for
Overview	At-a-glance counts (ontologies, object types, actions, shared) and shortcuts into the other tabs
Explore	Browse objects of each type in a preview table and open an object’s inspector — its views and available actions

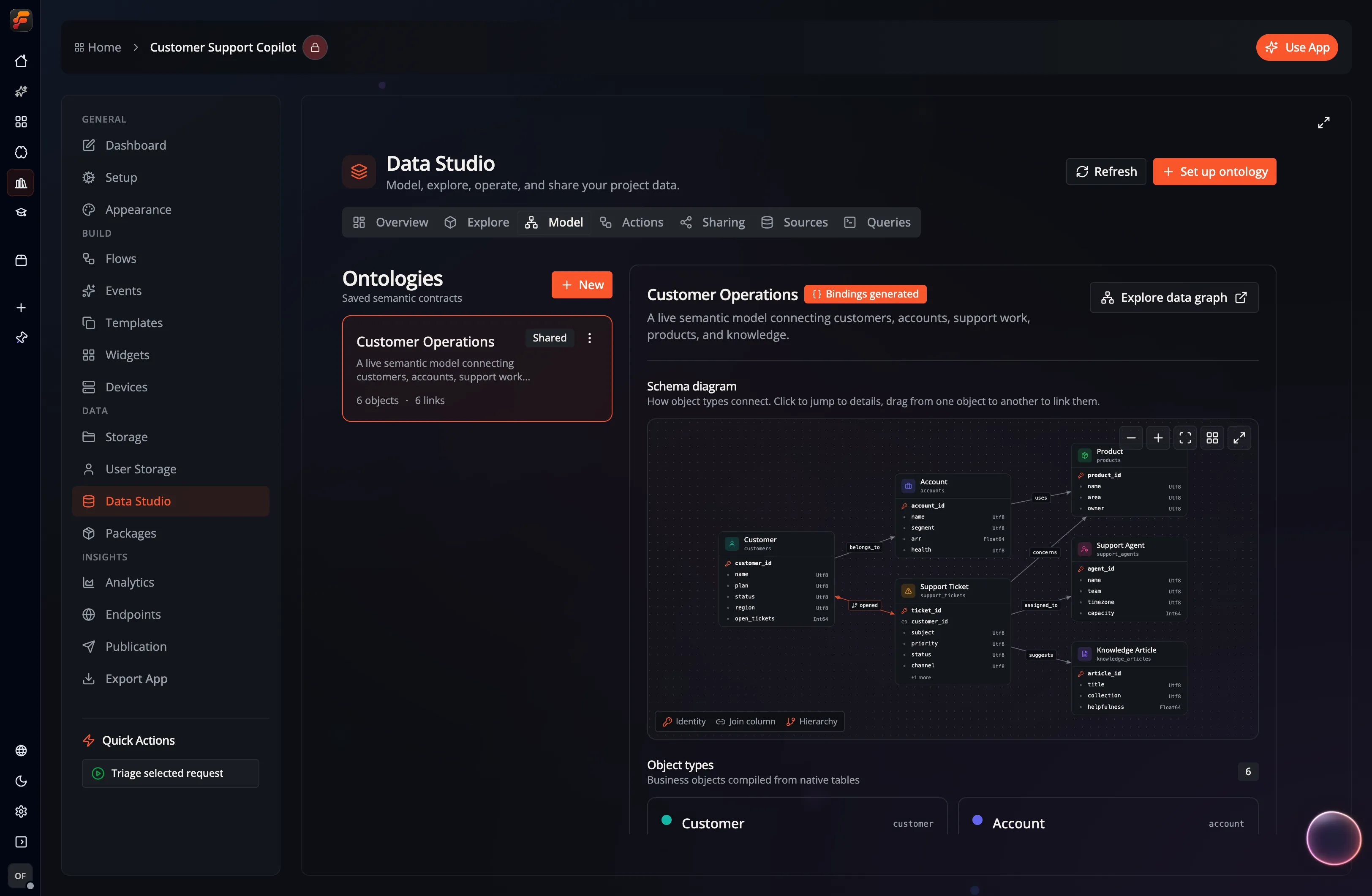

Model	Create, rename, and delete ontologies; review object types and relationships; open the data graph
Actions	Define governed operations that run on an object type
Sharing	Expose your ontology to connected projects, and install ontologies from others
Sources	Inspect the native tables the ontology is built on

The building blocks

Object types

An object type maps one table to a kind of entity. Each object type has:

• Object name — the human-readable label (e.g. Sales Order). Free-form; spaces are fine.
• API name — a stable identifier used by generated nodes and the API. Sanitized to letters, digits, and underscores, derived from the object name by default, and editable.
• Unique ID — the column that uniquely identifies each object.
• Display property — an optional human-readable caption (e.g. a name or title); defaults to the unique ID.
• Property columns — the columns projected onto each object.

Link types

A link type maps a table to a relationship between two object types — a source object, a target object, and the columns that hold their IDs. Link types power traversal (“who does this person know?”), path finding, and the graph view.

Graph overlay

An overlay is the whole ontology: its object types, link types, styling, object views, and actions, stored as a single metadata record inside the same database as the tables it references. Because it lives next to the data, scope is automatic — a project overlay lives in the project database, a user overlay in the user database.

Hierarchy & composition

Any link type can be marked as containment — a parent → child hierarchy edge. The link’s source object type is the parent and its target is the child (for example Department → Person, or a self-referential Department → Department). Containment turns a flat set of object types into a drill-down tree you can expand and collapse on demand, following only the hierarchy edges rather than every relationship.

A containment link can also reach into another ontology, so you can build one ontology out of others:

• Another local ontology — the child objects are defined by a different overlay over the same database.
• An installed remote ontology — the child subtree lives in a connected project.

This lets you model something like Plant → Departments → People → HR, where each level may be owned by a different ontology, and drill in only as far as you need.

Drilling in

In the Explore data graph, expanding a parent object loads just its direct containment children — lazily, one level at a time — and collapsing hides the subtree again. Children mapped by another local ontology are loaded from that ontology. Children that live in an installed remote ontology are expanded from boards with the Query Remote Ontology Children node instead (see Shared & Remote Ontologies), so the producer resolves them across the connection.

Setting one up

Use Model → Create ontology to open the setup wizard:

1. Sources — pick the tables to include.
2. Objects — for each table, confirm the object name, API name, unique ID, display property, and properties. Duplicate names or API names are flagged inline.

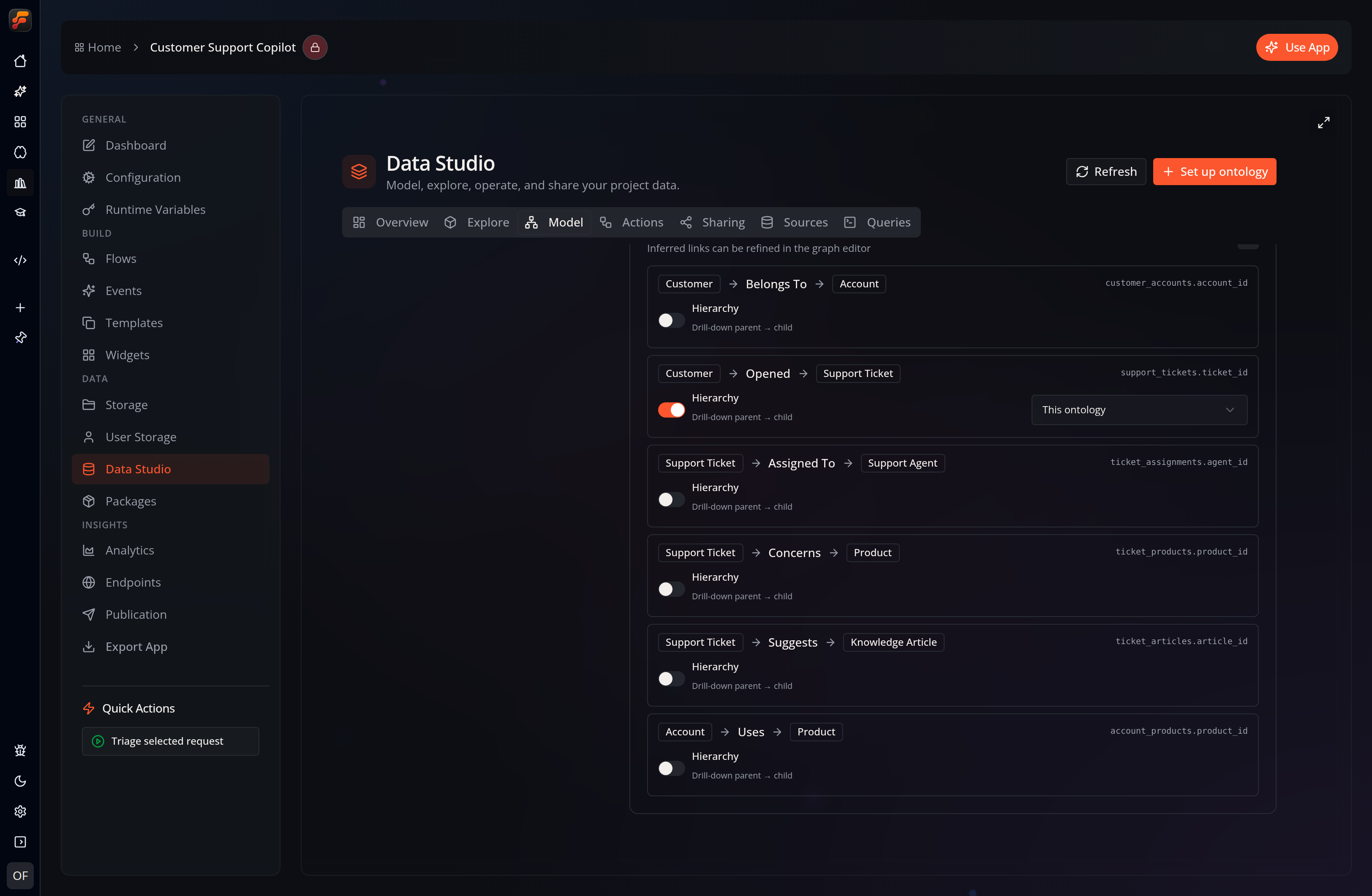

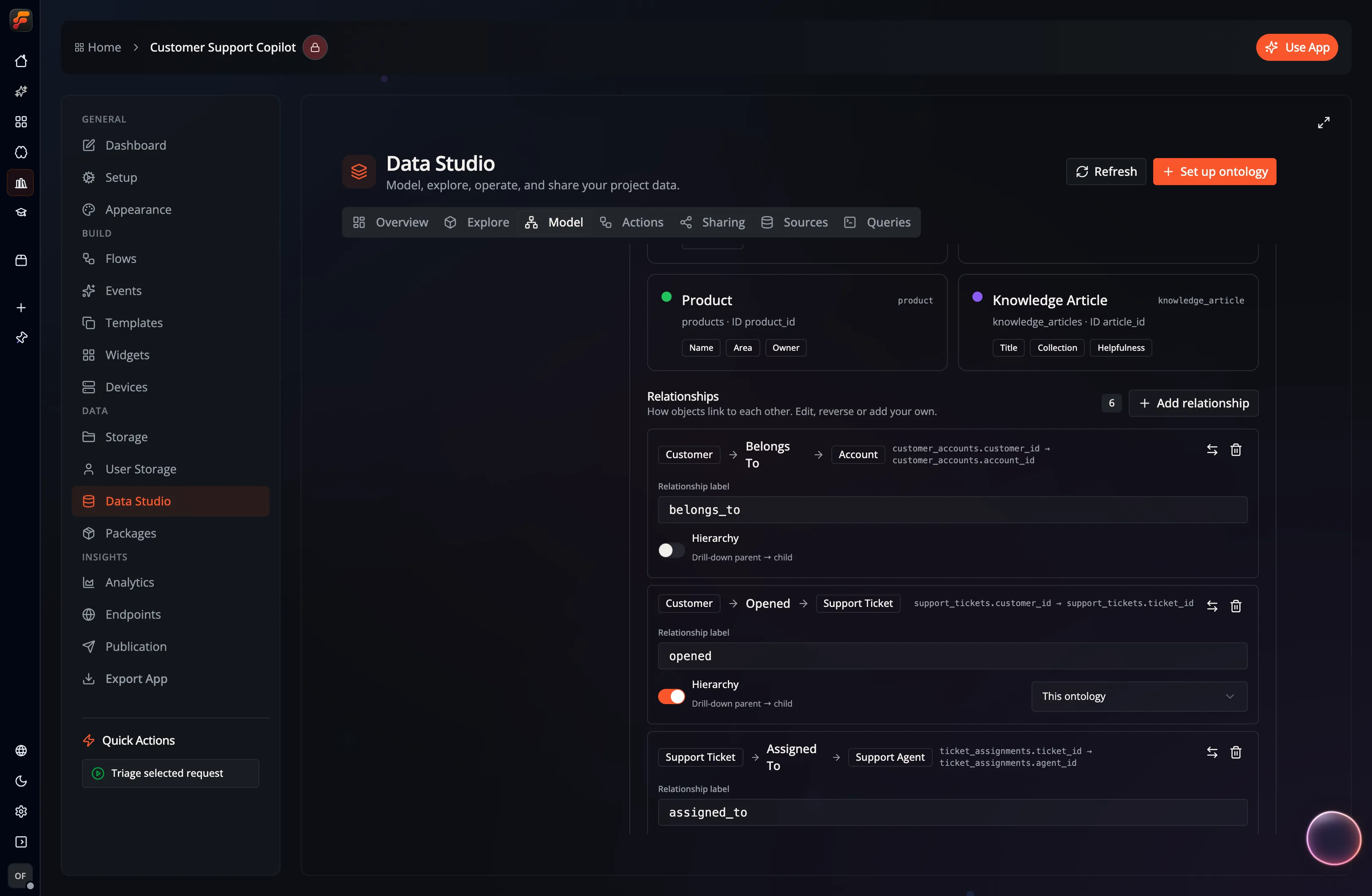

3. Relationships — Flow-Like infers link types from foreign-key-like columns. Review them, rename or remove any, and keep your edits as you navigate between steps.
4. Publish — the draft is validated against the live database (tables and columns must exist, labels must be unique and queryable). Anything wrong is shown per mapping before the ontology is saved.

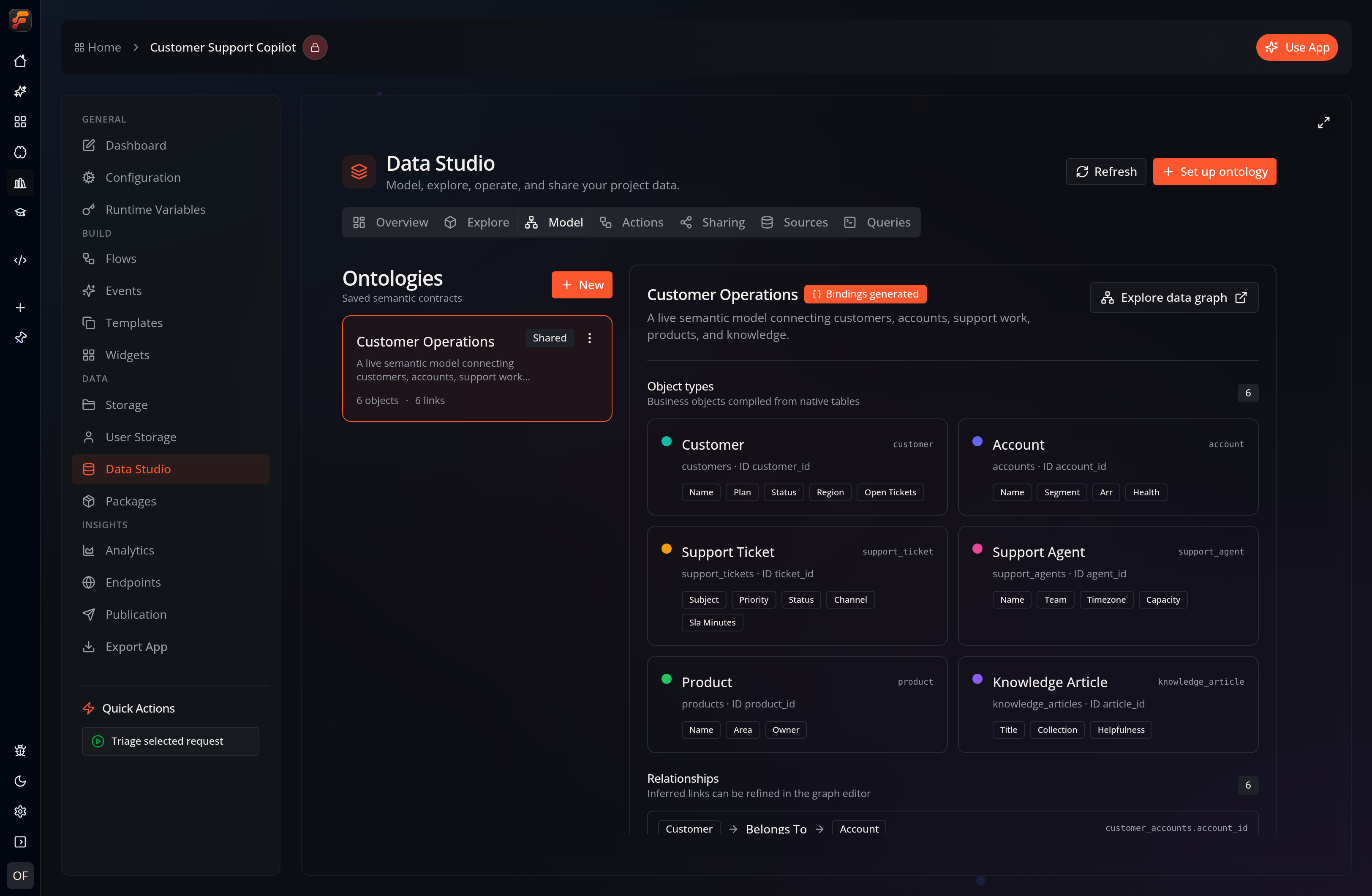

Once saved, the ontology appears in Model, and — if bindings are enabled — its objects become available as board nodes (see below).

Exploring the graph

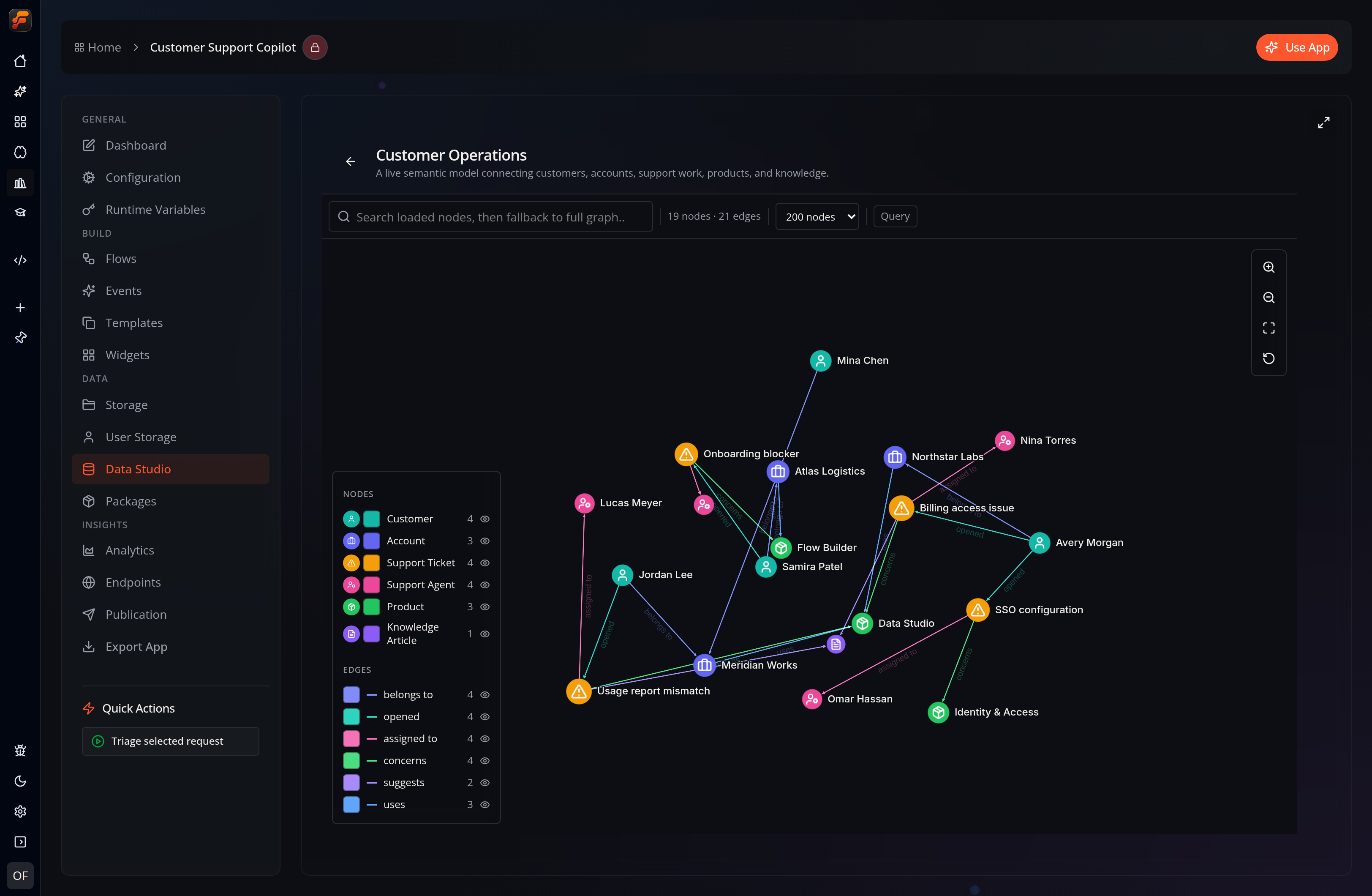

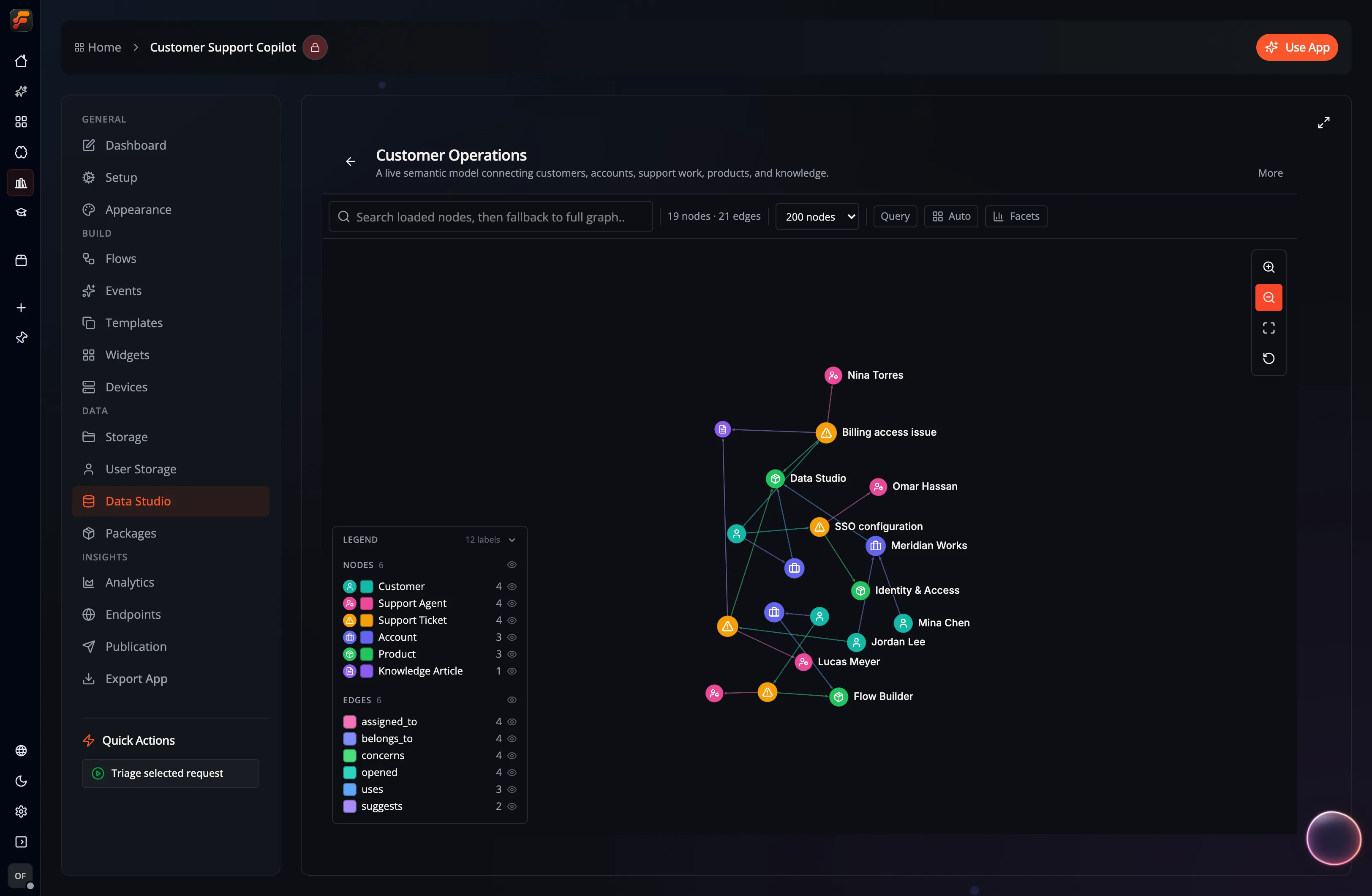

Open an ontology’s data graph — from Model → Explore data graph — to see your objects and links in a WebGL graph:

• Search matches loaded nodes first, then falls back to a full-graph search.

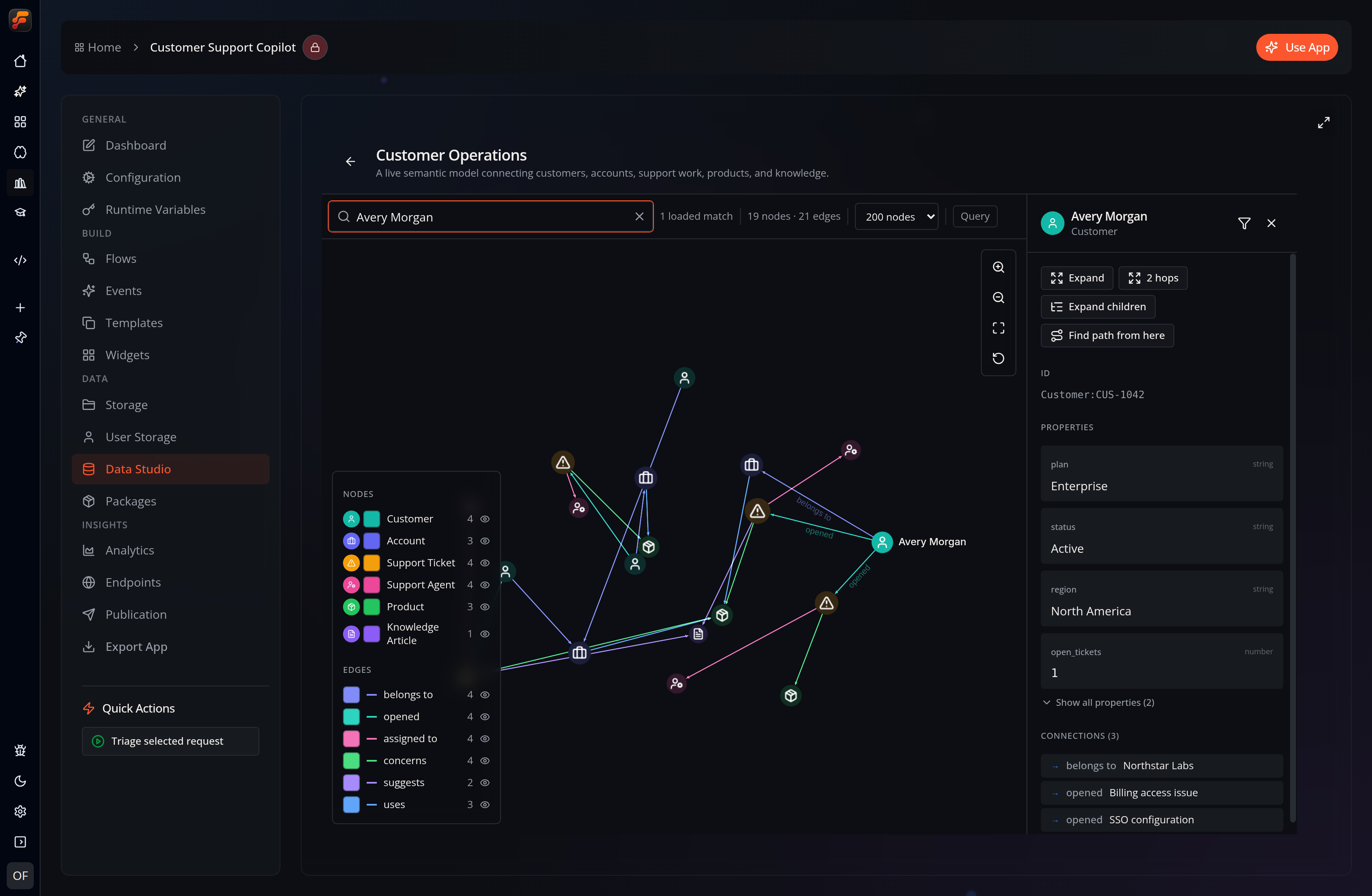

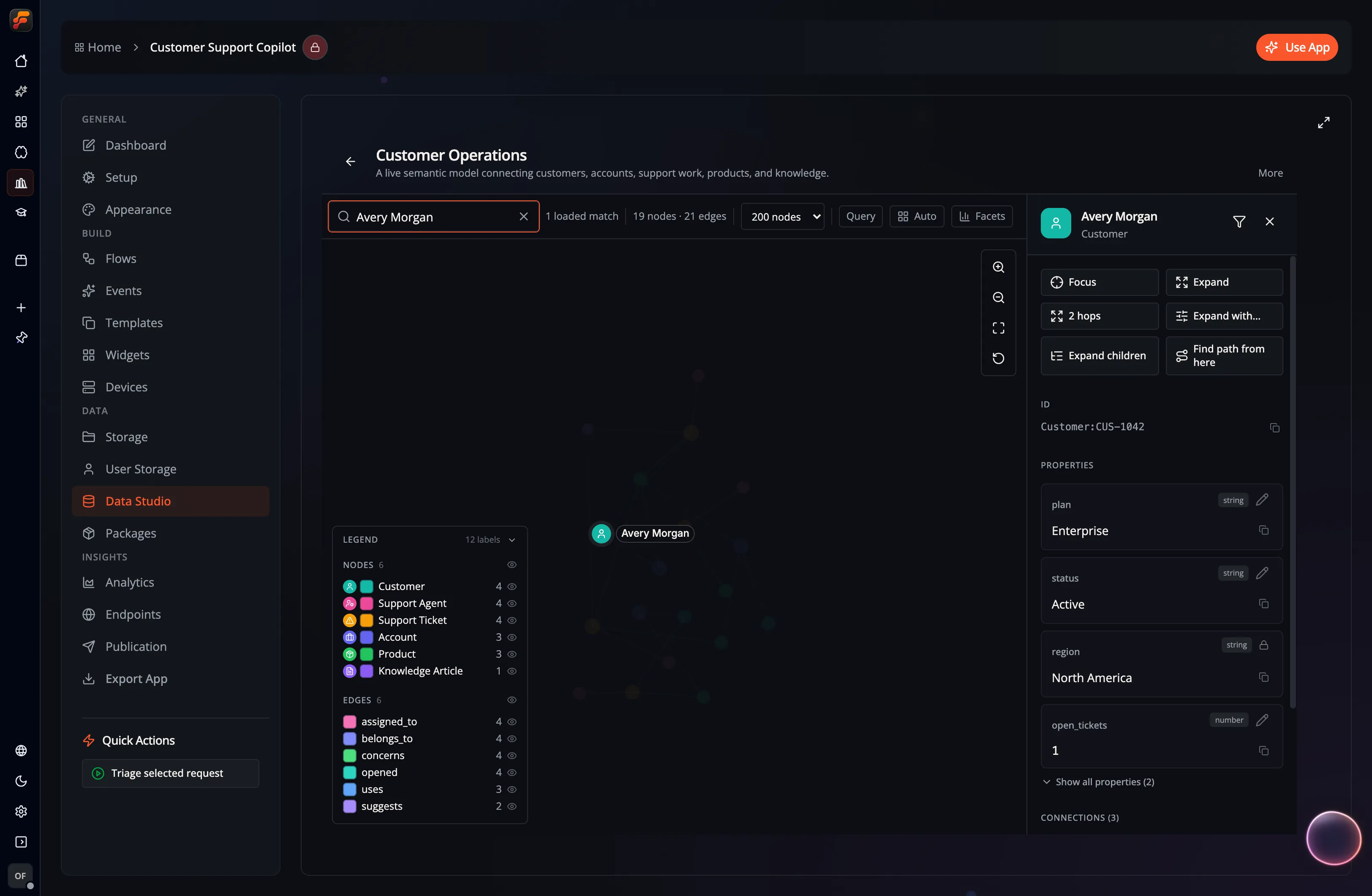

• Click a node to open its inspector; shift-click (or the inspector’s Expand) pulls in its neighbors, one or two hops at a time.
• Find paths — from a node’s inspector, choose “Find path from here”, then click a second node. Flow-Like returns the shortest connections (with alternative routes) and highlights them. This is the “how are these two things connected?” question.

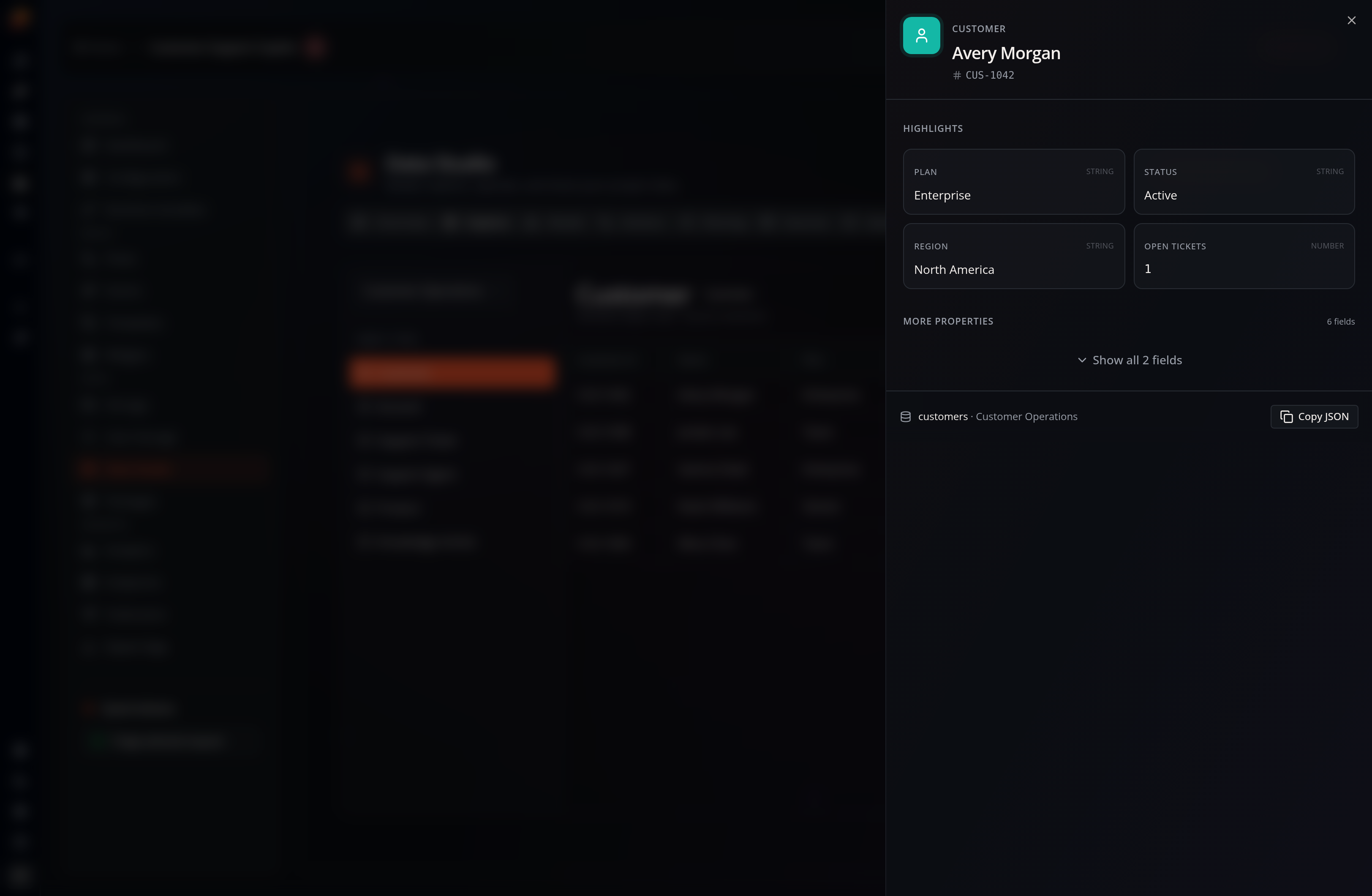

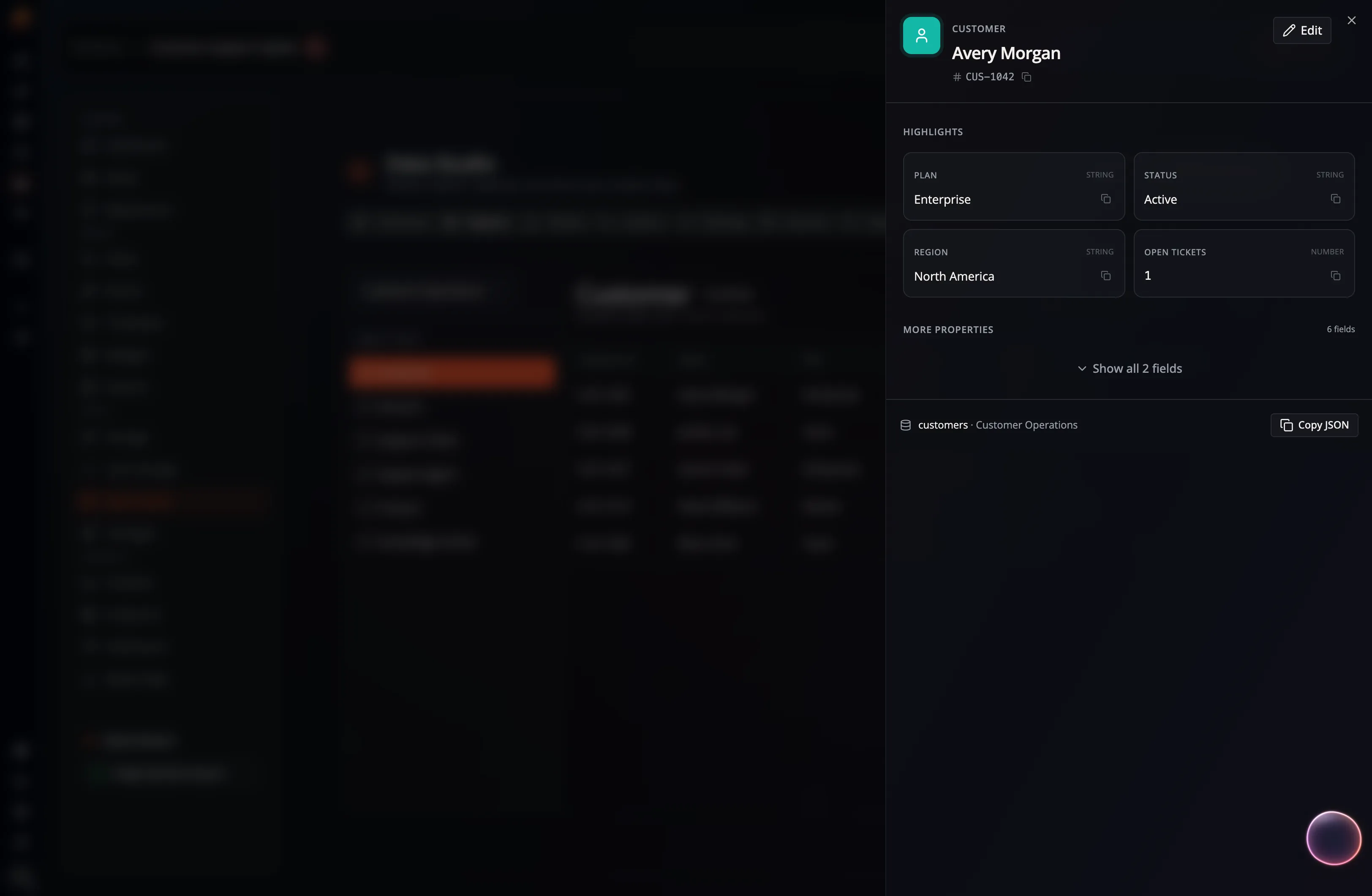

• Object views — the inspector shows a title property and prominent properties first, and offers any actions defined for that object type.

Graph-wide analytics — object counts, connected components, and the most connected / most central objects — is available through the Graph Analytics node (see below).

Performance

Queries are bounded server-side: a shared concurrency limit, a per-query row cap, and a Cypher pre-flight that rejects unbounded variable-length paths. Use the limit selector and targeted expansion for large graphs rather than loading everything at once.

Actions on objects

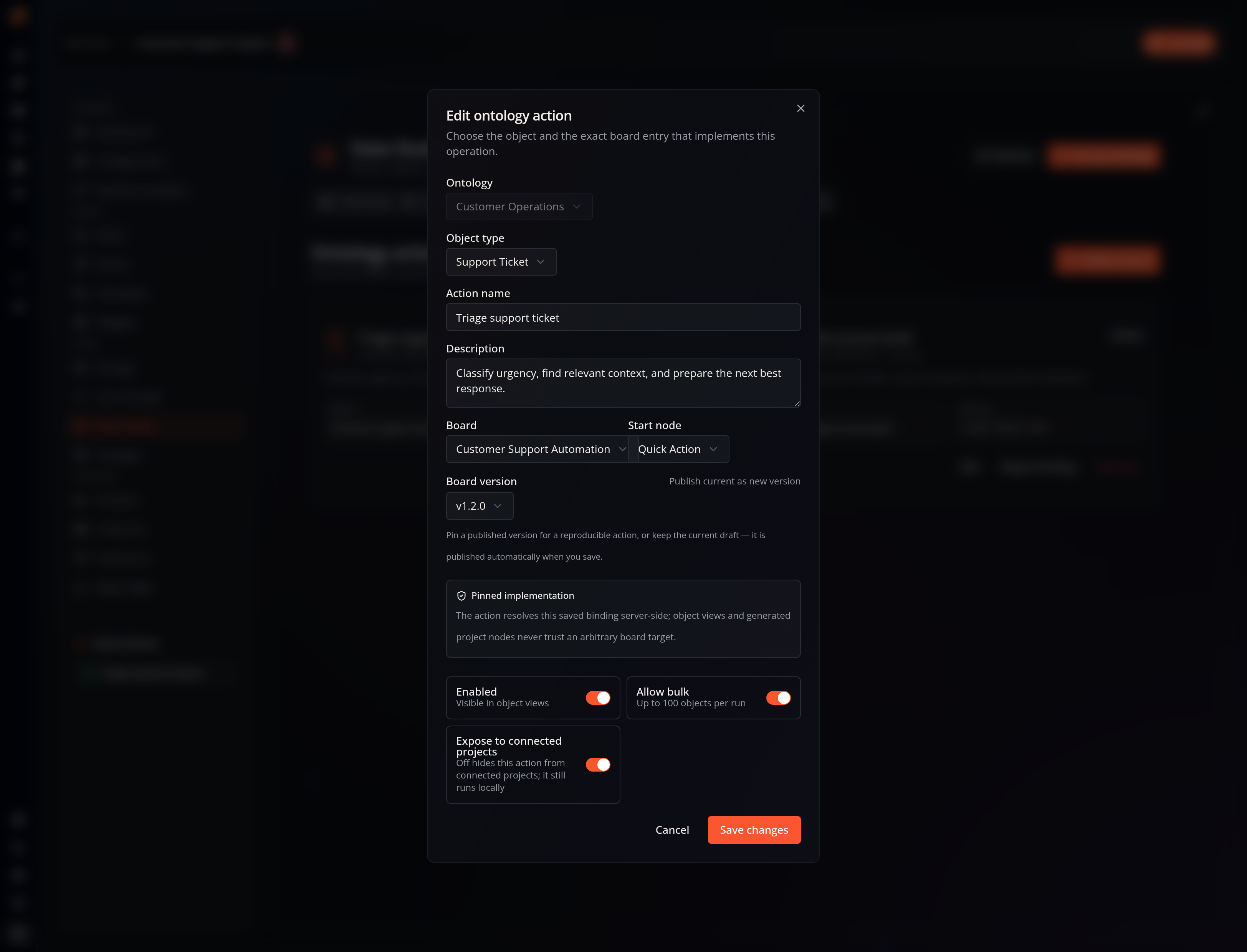

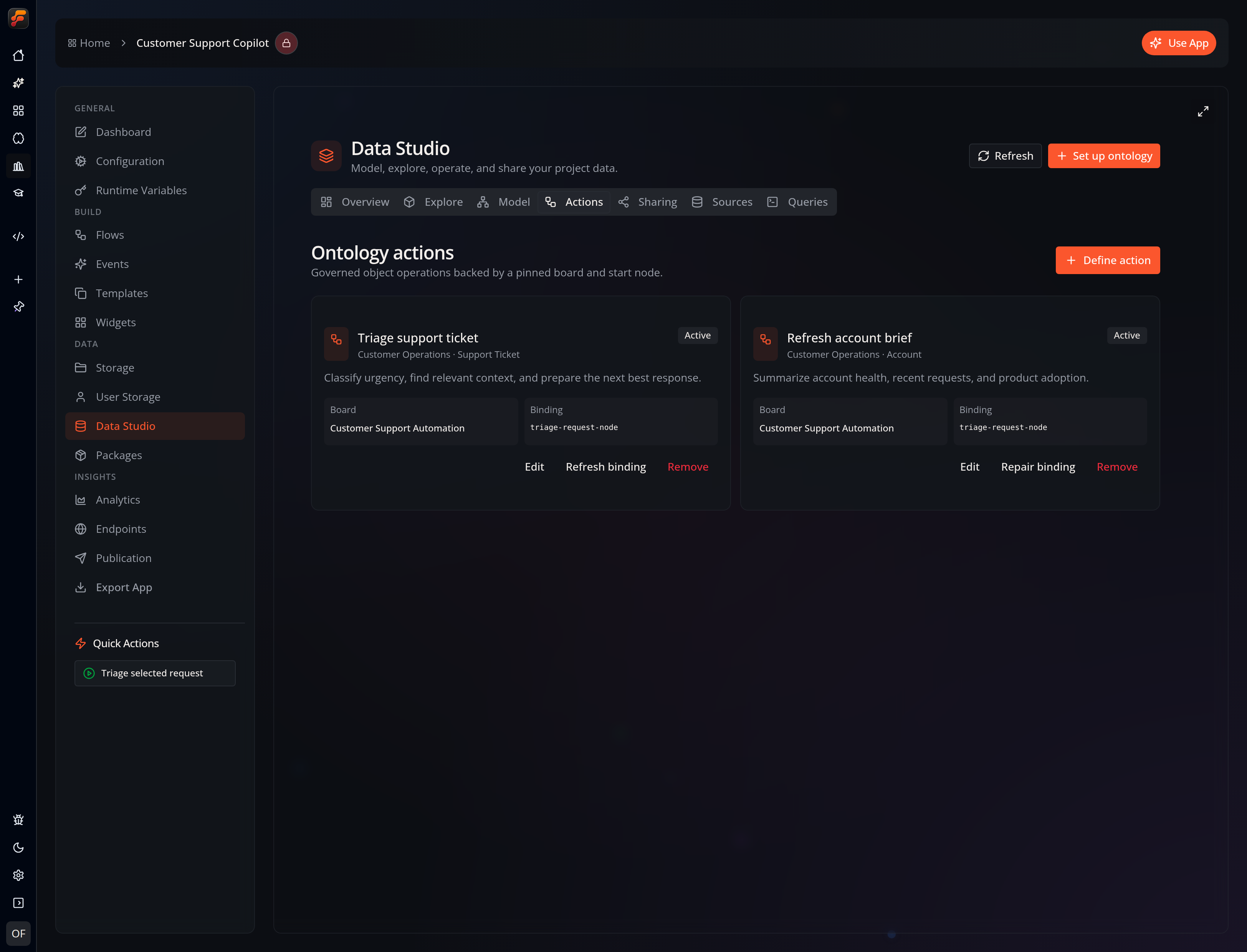

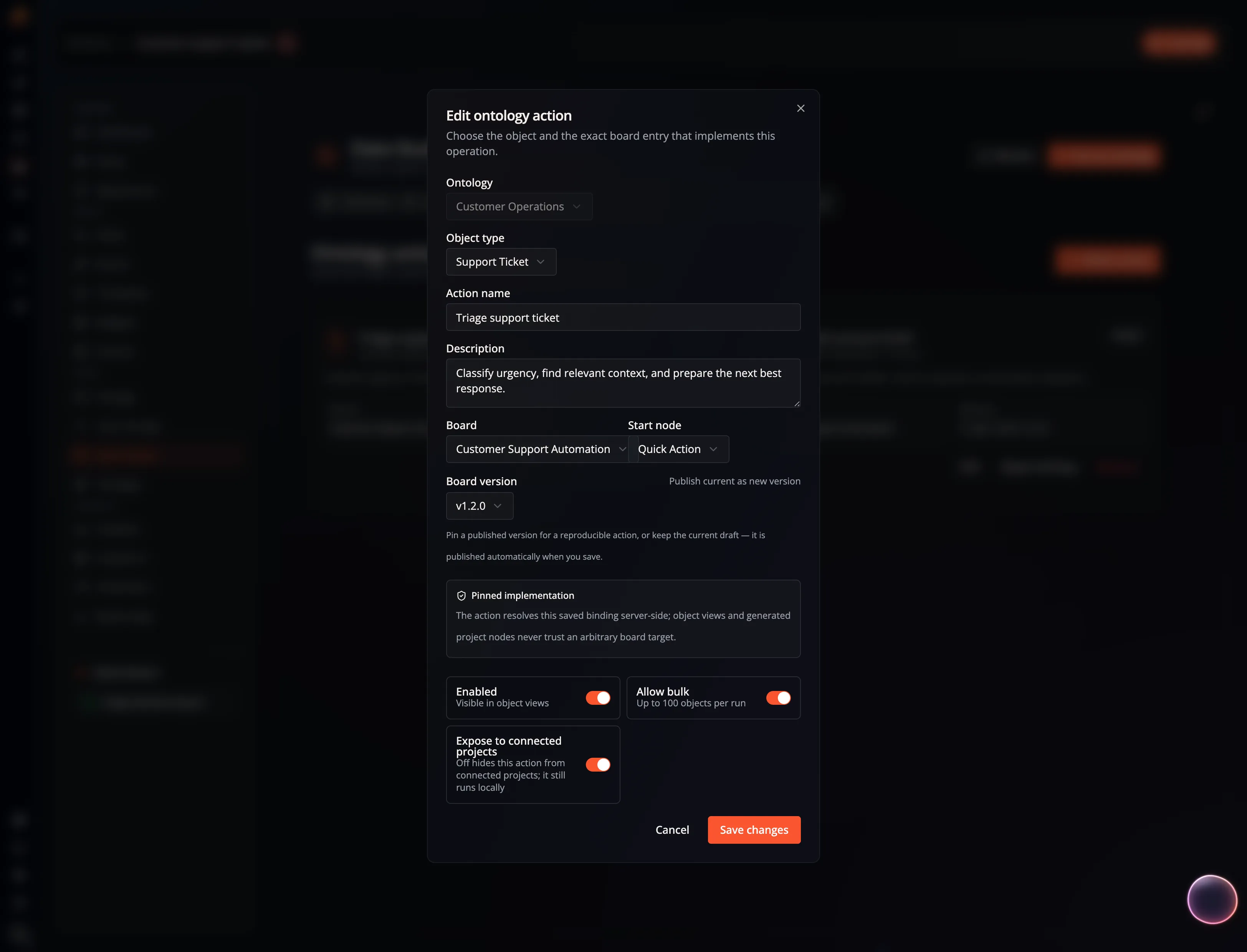

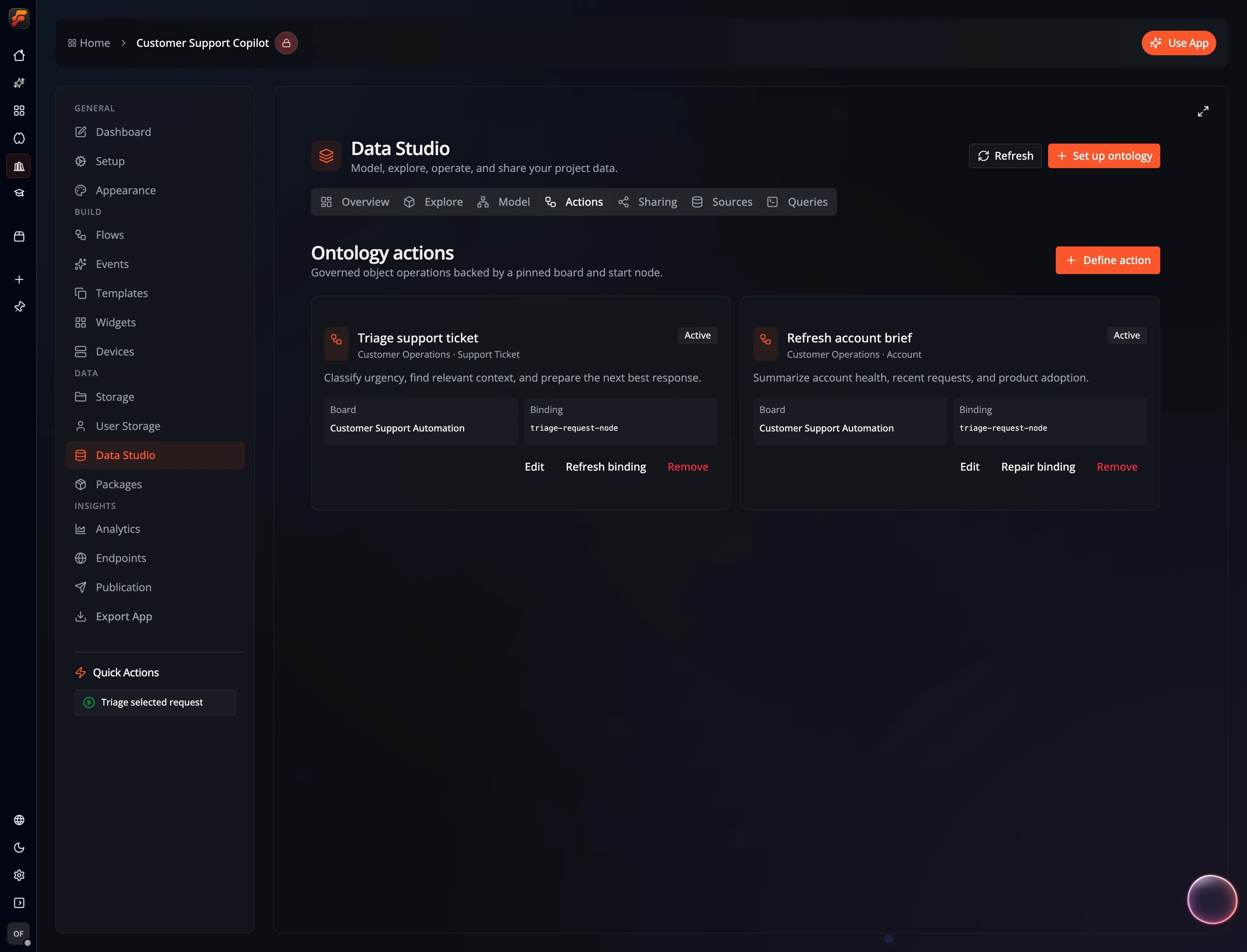

An action is a governed operation that runs on an object type — “Approve order”, “Enrich contact”, “Dispatch vehicle”. Define one in the Actions tab:

• Object type the action applies to, and an implementation board plus its start node.
• Board version — pin a specific published version for a reproducible action, or keep the current draft (it is published automatically when you save). Pinning to an immutable version is what makes an action safe to expose and re-run.
• Parameters — inferred from the start node’s parameters pin schema, and validated on every invocation.
• Enabled and Allow bulk (up to 100 objects) toggles.

Under the hood, saving an action materializes a protected, version-pinned internal event and stores a hash of the whole contract. At invoke time the server re-checks that hash, so edits to ontology metadata can never widen what an action is allowed to read or execute.

Using an ontology in boards

When Generate board bindings is on, the ontology contributes nodes (under Data Studio) to the app’s node catalog so your flows can work with objects directly:

• Query Ontology Objects — fetch objects of a given type.
• Prepare Ontology Action — assemble a validated, typed action request from object references. Each enabled action also gets its own binding node named after it.

There are also general graph nodes for advanced use — Cypher Query, Graph Neighbors, Graph Subgraph, Find Paths, and Graph Analytics — under Data → Database → Graph → Query.

Next

• Shared & Remote Ontologies — expose an ontology to connected projects and install ontologies published by others.
