Shared & Remote Ontologies

A remote ontology lets one project publish its semantic layer as a contract that other, connected projects can install and build on — without ever seeing the underlying data or the boards that implement its actions. This is how a shared, organization-wide ontology works: a producer owns the definition, and consumers subscribe to it.

Everything here is in Data Studio → Sharing.

The mental model

• A producer exposes an ontology. It stays the source of truth.
• A consumer installs a sanitized copy of the contract. It gets the object types and the semantics of actions — but not the producer’s private implementation (board IDs, versions, start nodes are stripped).
• When a consumer invokes a remote action, execution happens in the producer’s project, which resolves those opaque identifiers itself. The consumer never runs the producer’s board directly.

Only exposed contracts are shared

The discovery endpoint returns only ontologies the producer has explicitly exposed. Exposure can be turned off at any time, which stops new discovery and installs immediately.

Prerequisites: connect the projects

Sharing rides on app connections. Before anything appears in the Sharing tab:

1. Create an active connection from the consuming app to the producing app under Team → Connections.
2. The connection’s role must grant Read Files or Read Database on the producer. Without it, the producer’s contracts stay invisible even if exposed.

If there are no active connections, the Sharing tab shows “No active app connections. Create one from Team → Connections.”

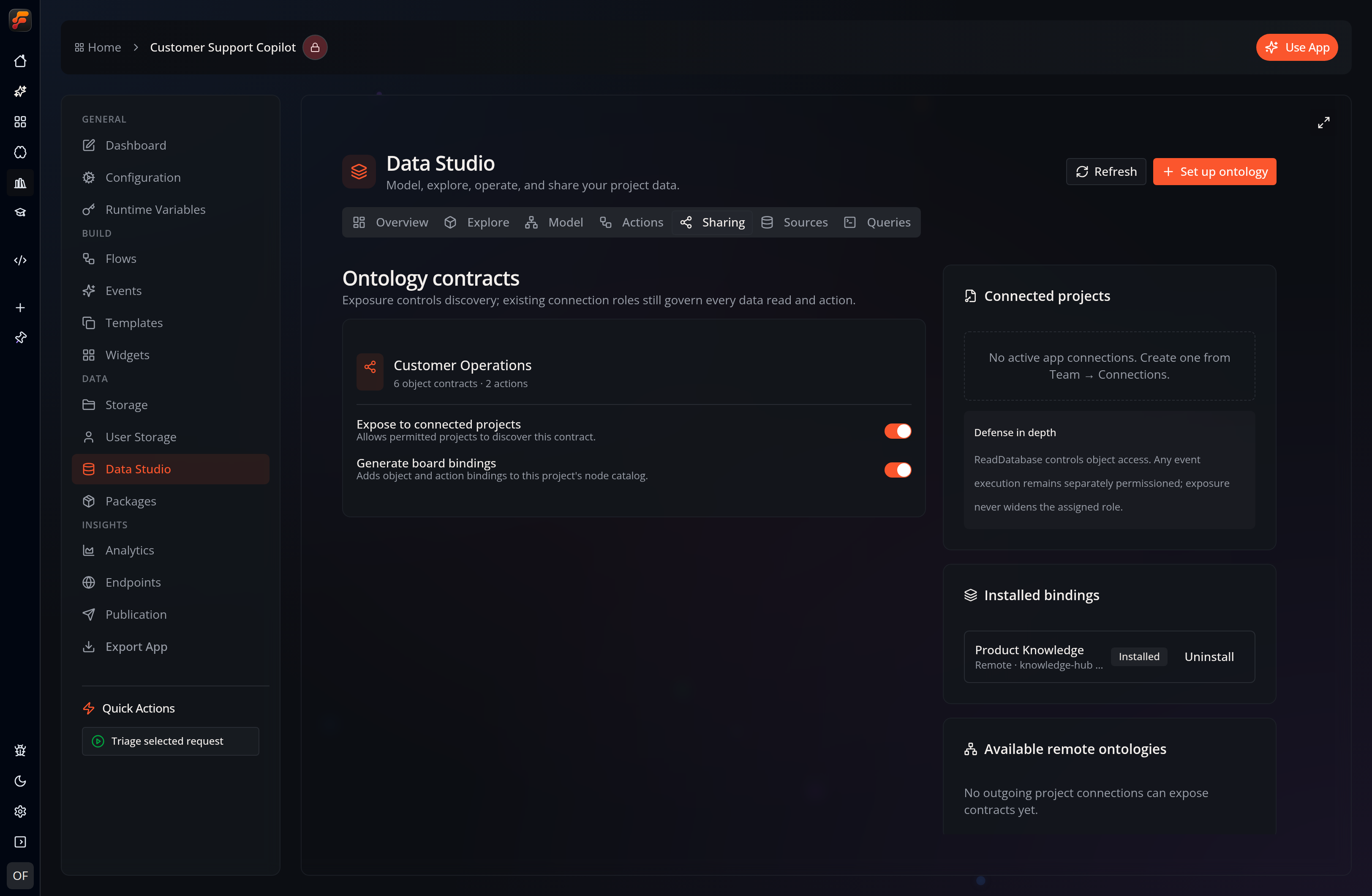

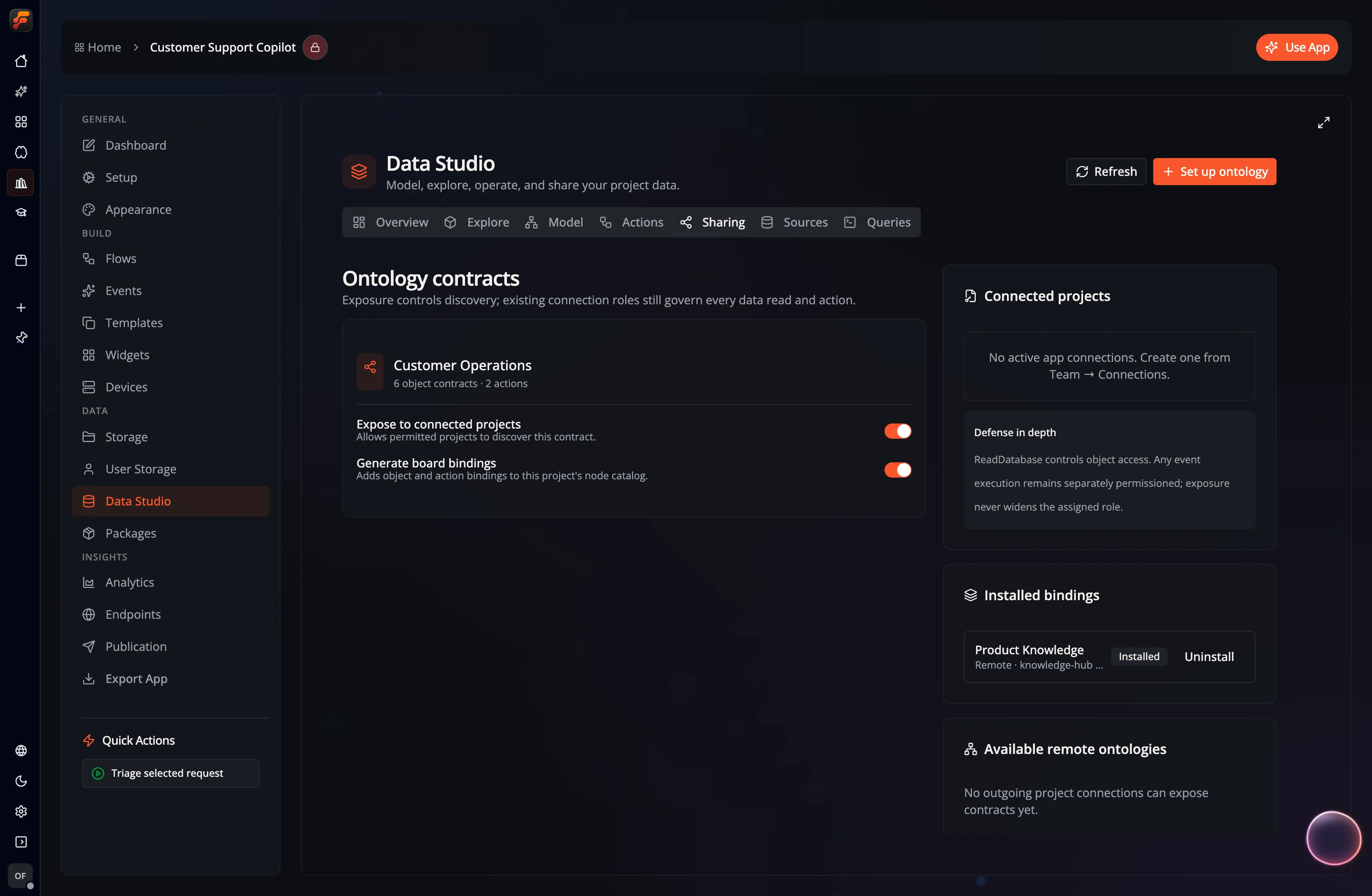

Producer side: expose an ontology

On each of your ontologies in the Sharing tab there are two switches:

Switch	Effect
Expose to connected projects	Makes this contract discoverable by permitted connected projects.
Generate board bindings	Adds this ontology’s object and action bindings to this project’s own node catalog.

Turning Expose on is all a producer has to do. Consumers with a qualifying connection can then discover and install it.

Consumer side: discover and install

The Available remote ontologies panel lists your active connections. For each one:

1. Discover (or Refresh) — calls the connected project and lists the ontology contracts it exposes. Each shows its name and object-type count.
2. Install — installs the sanitized contract into your project. Its status badge flips to Installed, and the contract’s object bindings are added to your node catalog.

An installed contract is labelled “bindings only” — a reminder that you receive object semantics and action definitions, never the producer’s boards.

Keeping in sync

Each installed contract remembers the producer version it was captured from. When the producer changes their ontology, the badge shows Update available. Click Refresh to pull the latest sanitized contract and regenerate your bindings.

Removing one

Uninstall removes the contract and its generated bindings from your project. Uninstall works even if the connection is no longer active, so you can always clean up a stale import.

Using a remote ontology in boards

Once installed with bindings enabled, the remote ontology contributes nodes to your catalog:

• Query Remote Ontology Objects — read objects of a remote object type. This runs against the producer through your connection, honoring the producer’s exposure and connection role.
• Query Remote Ontology Children — expand a parent object’s containment children within the installed contract. Like the objects node, it runs against the producer and honors exposure.
• Invoke Remote Ontology Action — invoke the producer’s governed actions by object reference. The producer executes the pinned board version and enforces its own parameter schema and permissions.

Remote hierarchies resolve within the exposed contract

A producer’s containment links keep their hierarchy flag when shared, so you can drill down through an installed contract. But a link that pointed at another of the producer’s ontologies has its target stripped during sanitization — a remote subtree only ever resolves within the exposed contract, never into a producer overlay you weren’t given.

Governance summary

Guarantee	How
Consumers see only what producers allow	Discovery returns exposed contracts only; the connection role must permit reading data
No implementation leaks	board_id, board_version, start_node_id, and event IDs are stripped from shared action contracts
No cross-ontology leaks	Containment link targets (dst_ontology, dst_binding_id) are stripped, so a remote subtree can’t resolve into a producer overlay that wasn’t exposed
Actions can’t be widened by editing metadata	Each action pins an immutable board version and a contract hash that’s re-checked at invoke time
Revocation is immediate	Turning off Expose stops new discovery/installs; existing consumers lose access on their next remote call
Consumers can always clean up	Uninstall never requires the connection to still be active
